TSR Series Tree Shears

HDR.R TSR Series Tree Shears

The HDR.R TSR Series tree shears are powerful, lightweight attachments for excavators, designed for safe and efficient pruning work in forestry, along roads, railways, and waterways.

Key features:
- Efficiency: Significantly increases working speed compared to manual pruning.
- Design: Equipped with a powerful cylinder and a low-mounted blade, allowing cutting close to the stump.
- Durable: Constructed from high-quality steel for a long service life and minimal wear on the machine.
- Versatile: Ideally combined with a tiltrotator for maximum maneuverability and precision.

A safe, fast, and cost-effective solution for professional tree maintenance.

Description

HDR.R TSR Series Tree Shears

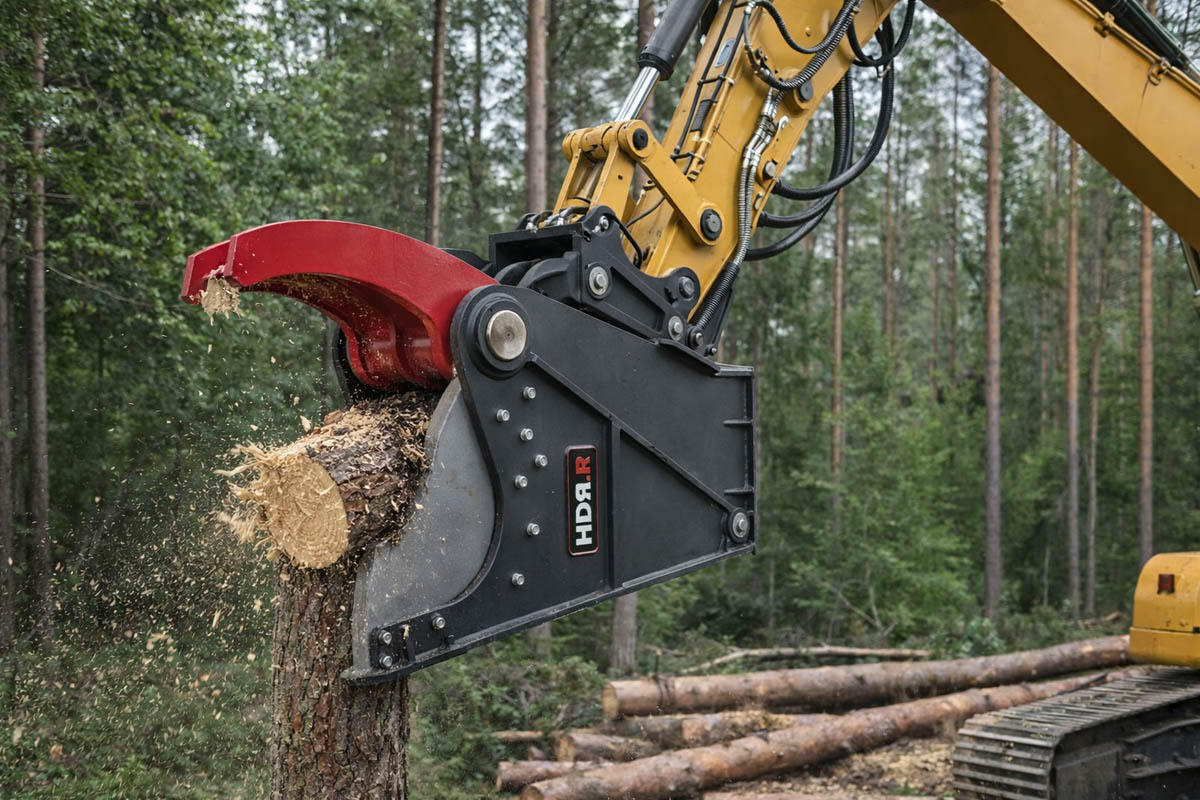

The TSR series tree shears for excavators are a powerful attachment designed for cutting trees, branches, and dense vegetation. They significantly reduce working time compared to manual cutting methods. These tree shears are ideal for applications in forestry, as well as for clearing trees along power lines, roadsides, railways, and waterways. Using a tree shear is safer, faster, and often more cost-effective.

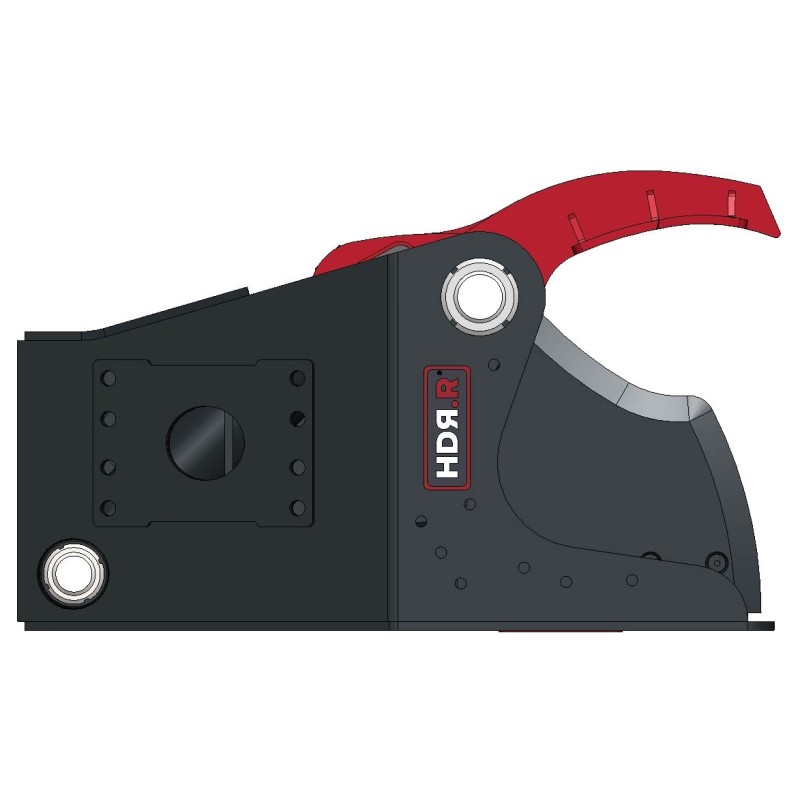

The TSR series tree shear is equipped with a fixed blade and a powerful cylinder, ensuring maximum cutting force and safe operation. Thanks to the use of high-quality steel, the shears are both durable and lightweight, minimizing wear and tear on the excavator. The blade is positioned at the bottom of the shear, allowing cuts to be made as close as possible to the stump. When combined with a tiltrotator, this tree shear becomes an exceptionally efficient and versatile tool.

Download brochure.

Specifications:

		TSR-2W	TSR-5W	TSR-15W	TSR-25W
Excavator class	t	1 - 2	2 - 5	6 - 16	15 - 26
Weight	kg	95	160	380	850
Jaw opening	mm	417	532	801	1078
Cutter length	mm	160	210	330	450
Working pressure	bar	210	210	230	250
Oilflow	l/min	10 - 15	20 - 25	70 - 90	110 - 140
Cutting diameter tree	mm	150	200	300	400
